Gauge 1 Aster SNCF 140-C 302 Green 2-8-0 Loco & Tender Live Steam Boxed

**SUPERB Aster SNCF Rare Green Edition Live Steam Edition**Superb Priced****

Code:
J38389
Type:
Specials
Live Steam
Gauge 1 & above
Aster
Material:
Brass/Metal
Weight (g's):
12000
Status:
SOLD
Quantity:

Description:

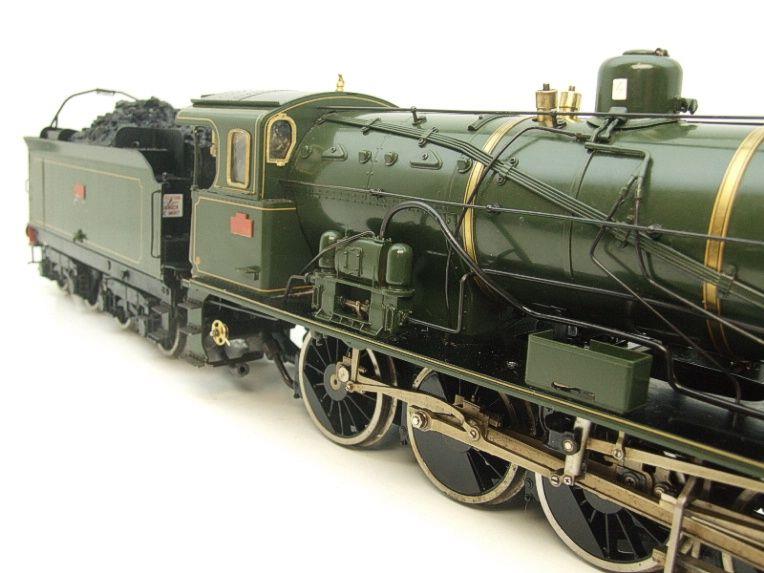

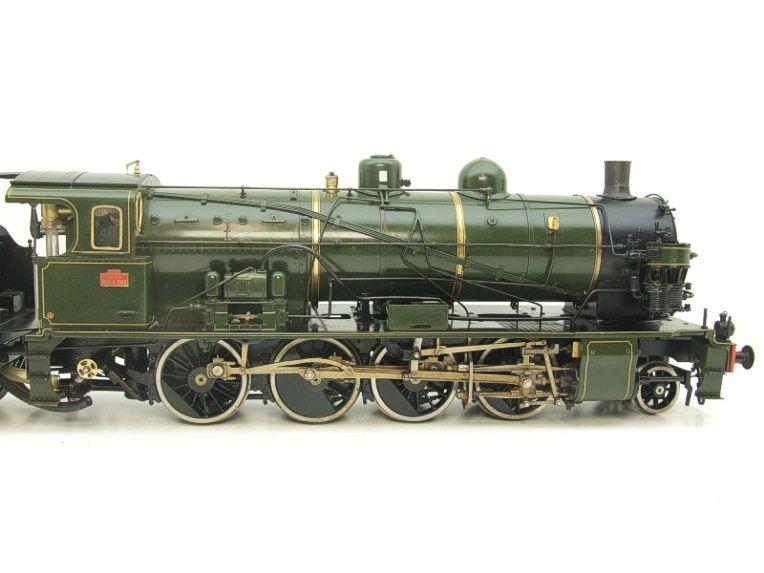

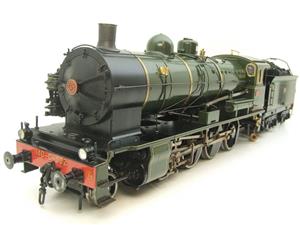

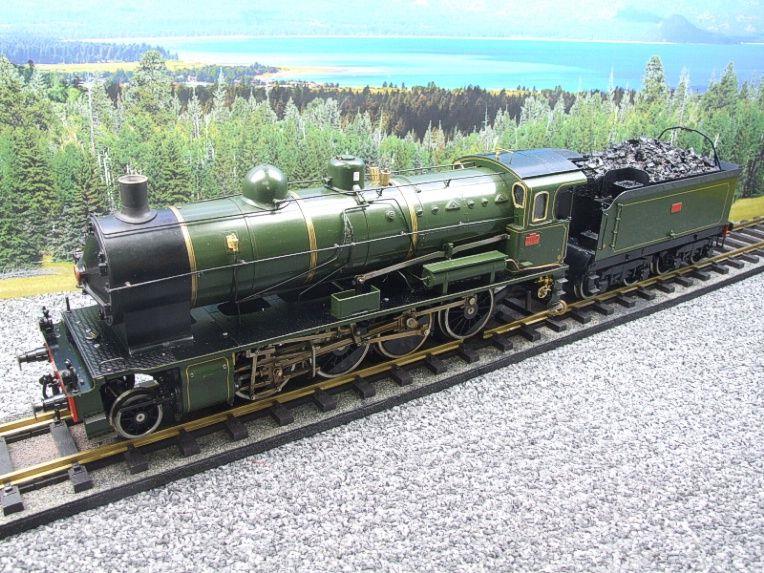

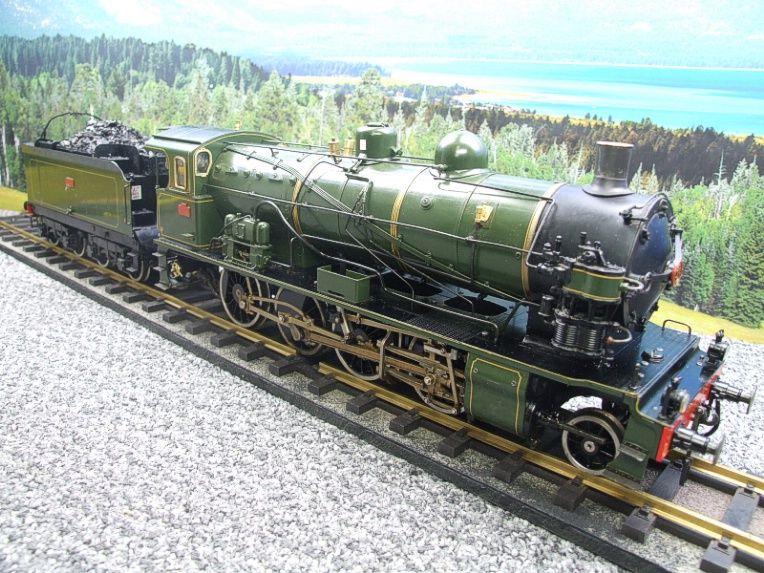

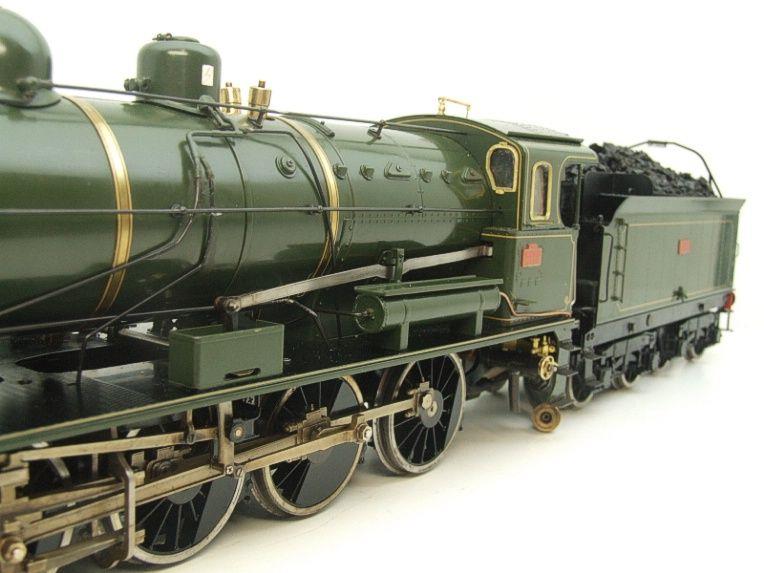

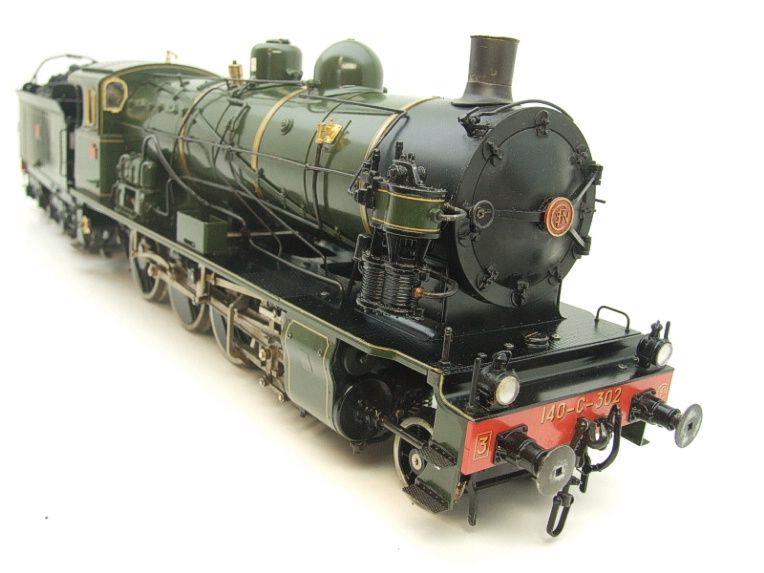

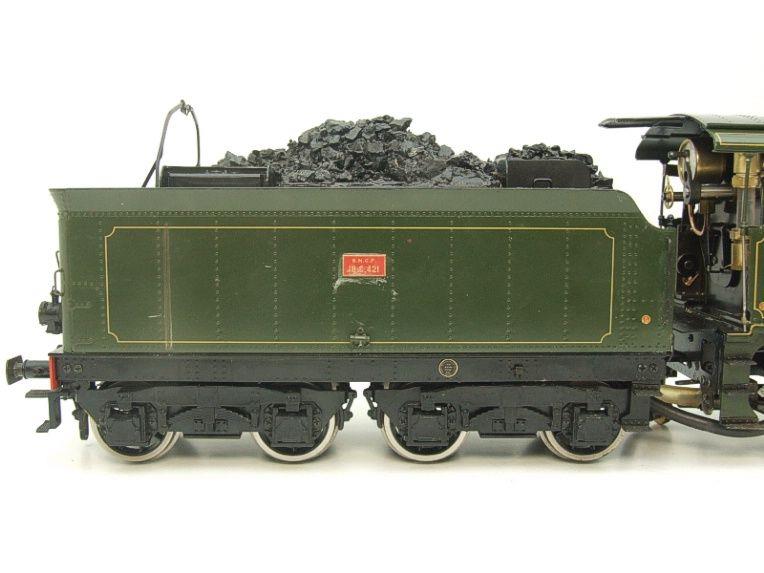

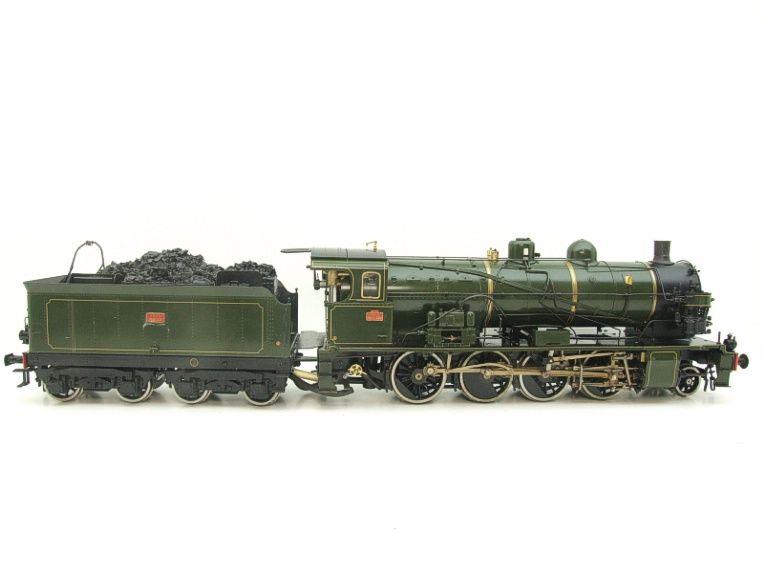

Gauge 1, Aster, Seriel No.107-258, SNCF, 140-C 302, Green Livery With Yellow Lining, 2-8-0 Loco & Tender.

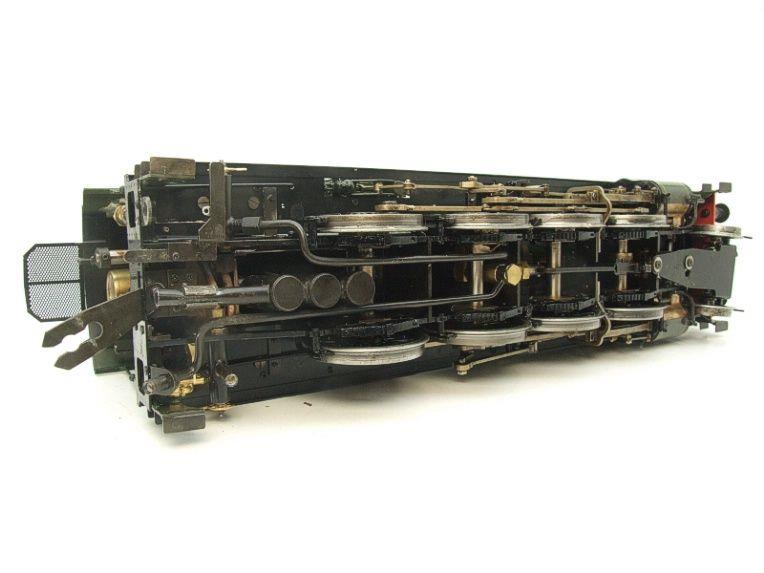

Solid brass & metal construction. Professionally built from kit. It is in excellent used condition. Appears to have been fired only on a few occasions.

Superb collectors edition would certainly enhance any collectors layout. Also being in the rarer SNCF Green Livery version edition.

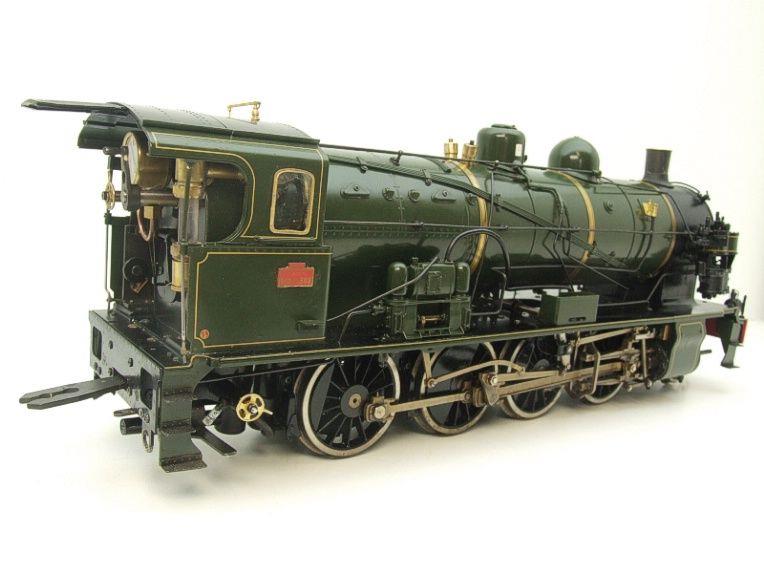

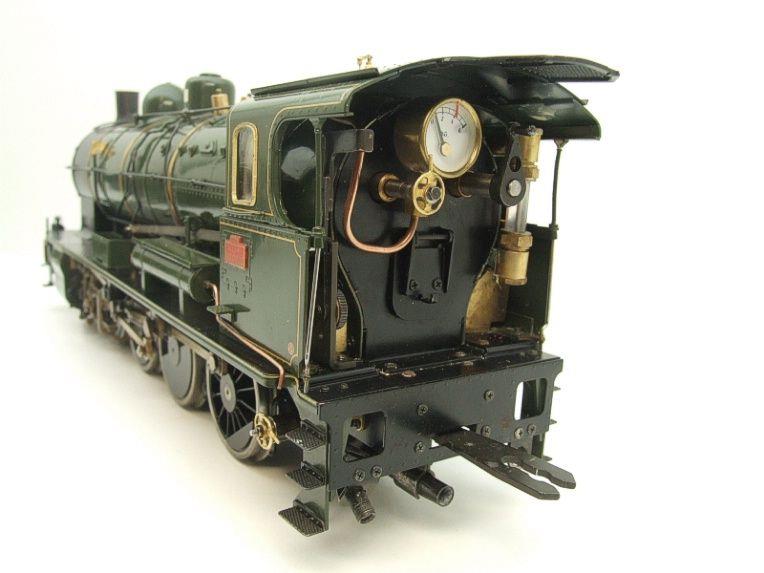

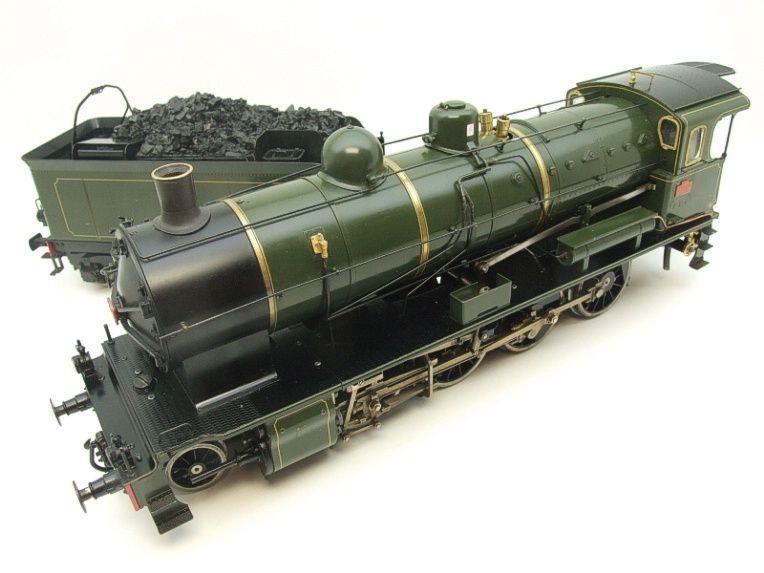

Full of realistic & superb detailing including its cab works detail with pressure Gauge.

Specifications: Scale /Gauge: 1/32, Gauge One, Length: 604.5 mm (Engine: 367.2mm, Tender:226.8mm) Width: 98mm Height: 138.3mm Weight: 5.2Kg (Engine: 3.7Kg. Tender: 1.5Kg)

Wheel arrangement: 2-8-0 (Consolidation type),Minimum turning radius: 2 meter, Boiler: C-type, water capacity 220 ml @ 70% full,Boiler fittings: check valves, 2x safety valves, Regulator valve, Blower valve, By-pass valve,

Blow-down valve, Pressure gauge.
Operating boiler pressure: 3.5kg.bar Valve gear type: Walschaert Slide valve travel: 5mm, Lap 1.0mm, Cutoff: 80%

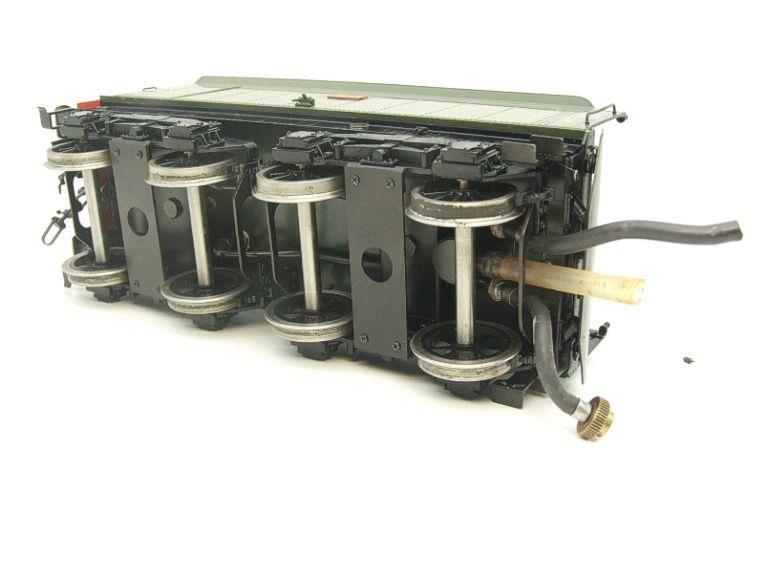

Cylinders: 2 Cylinders, Dia.12mm. x stroke 20mm Cylinder drain cocks fitted. Driving wheel: dia, 45mm Pilot wheel: dia. 26.5mm Tender truck wheel: dia. 30mm

Lubricator: Roscoe displacement type
Axle driven pump: Bore5mm x Stroke 5mm

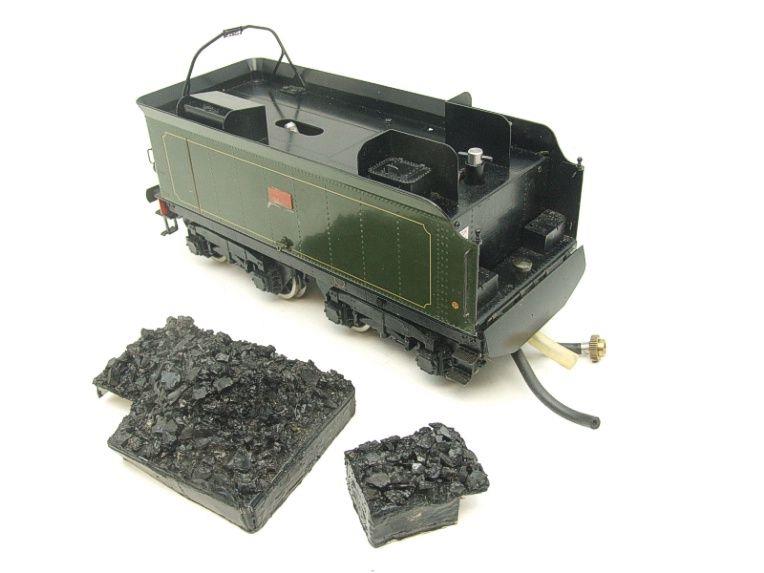

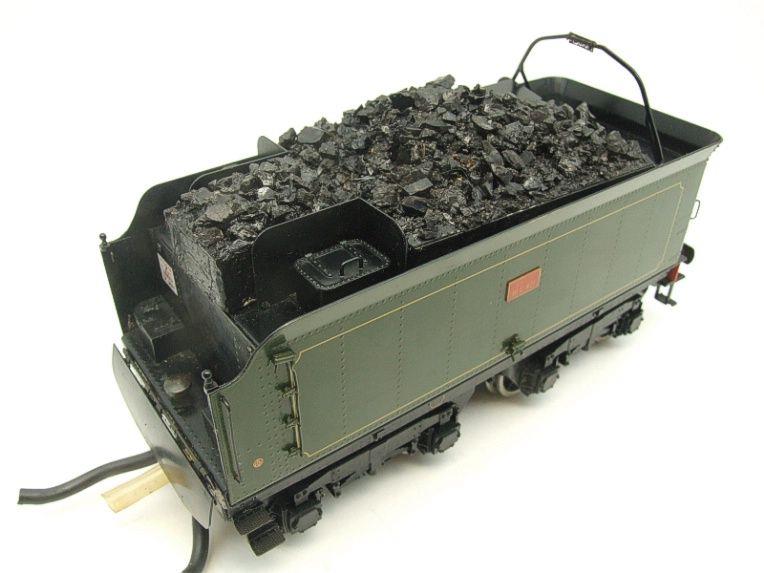

Tender hand pump: Bore 11mm x Stroke 12mm. Fuel: Methylated alcohol Alcohol tank capacity: 150ml. Water tank capacity: 250ml.

It has been fully serviced & tested and runs excellent.

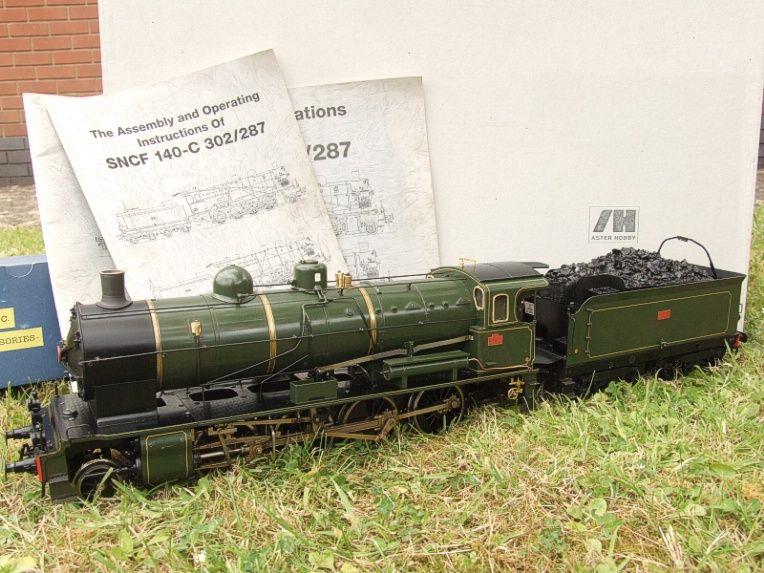

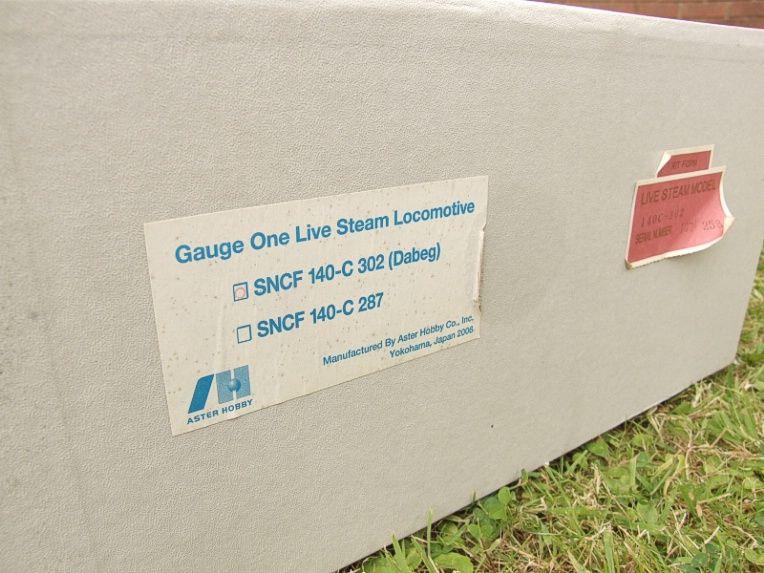

It comes in its original Aster box & will be carefully packed for the posting/shipping of it.

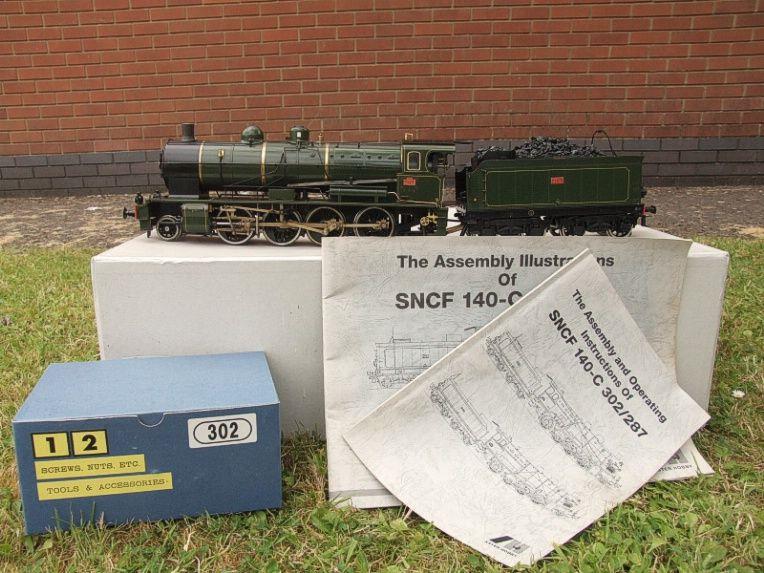

Supplied with a box of Tools-spares & comes with its assembly & operating manual.

Please note the length of display track is not supplied.
