Gauge 1 Aster Great Western GW Castle Class 4-6-0 Loco & Tender "Kingswear Castle" R/N 5015 Live Steam

**Superb ASTER Rare Live Steam Collectors Edition**Superb Condition**

Code:
J41522
Type:
Specials
Live Steam
Gauge 1 & above
Modern
Aster
Material:
Brass/Metal
Weight (g's):
8500
Status:
Reserved
Quantity:
Condition:
Pre Owned
Price:
£3,295.00
Orig Price
£3,999.99

Description:

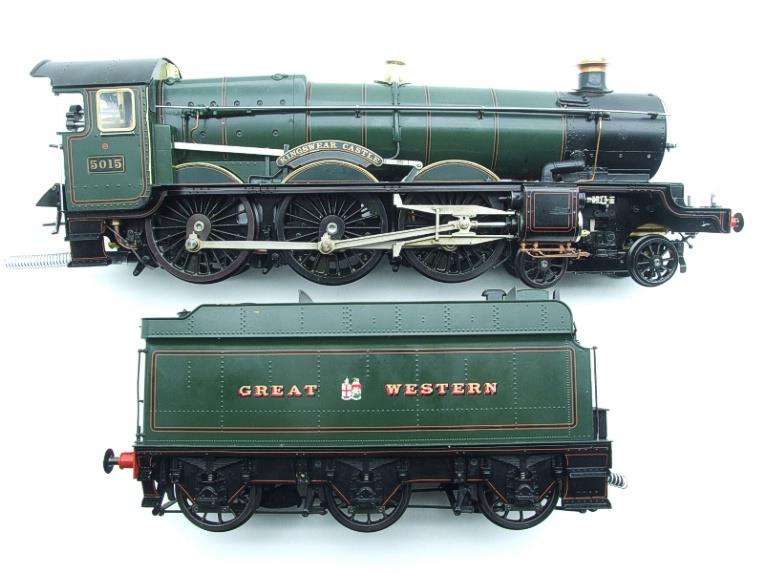

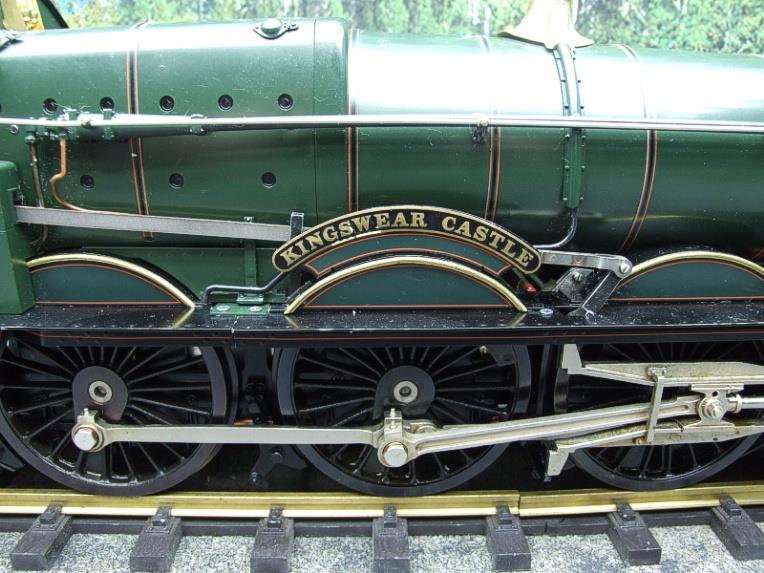

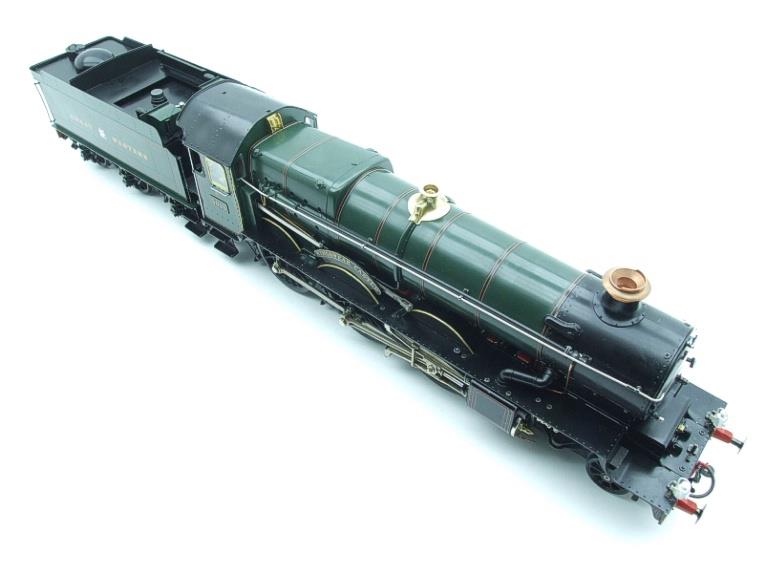

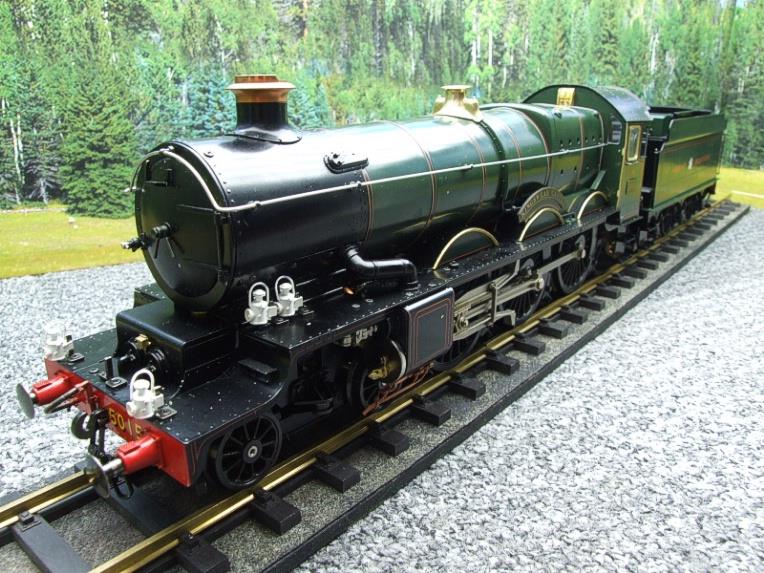

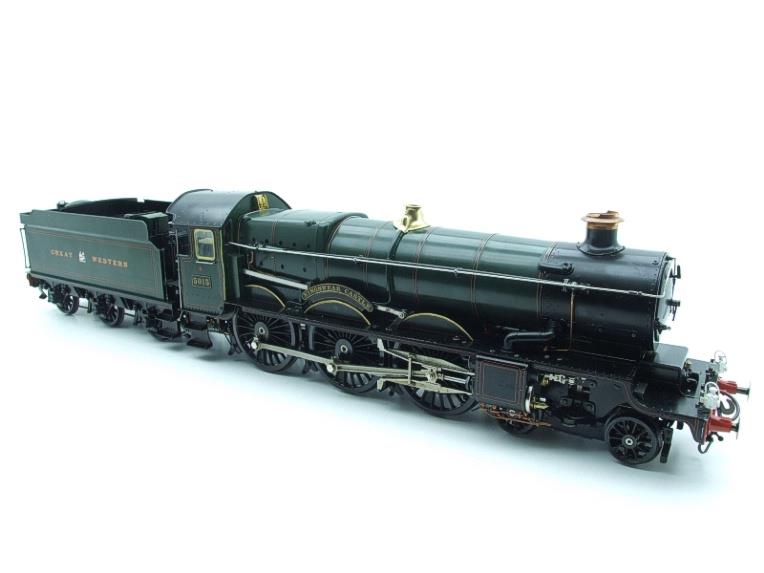

Gauge 1, Aster, Great Western, GW, Castle Class, 4-6-0 Loco & Tender Named "Kingswear Castle" R/N 5015.

Solid brass & metal construction.It is in superb condition having been air test steam only. Superb collectors live steam edition which would certainly enhance any collectors layout. (Becoming certainly rare editions now to find.)

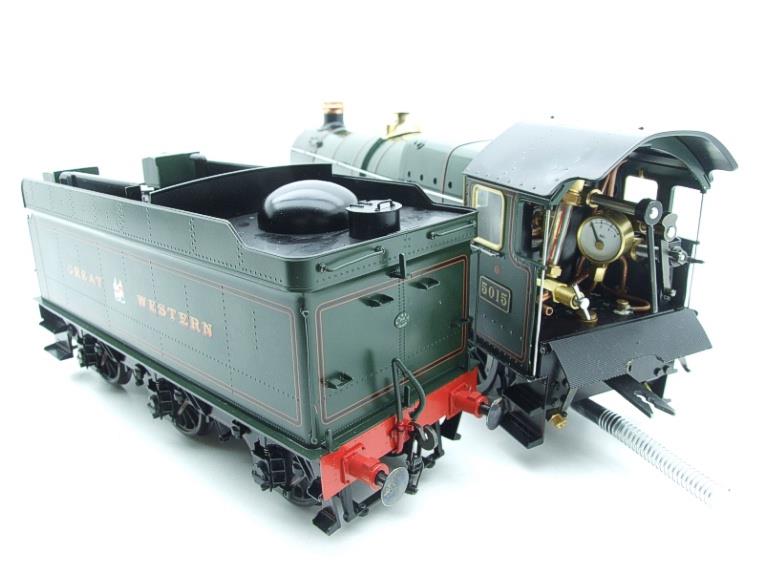

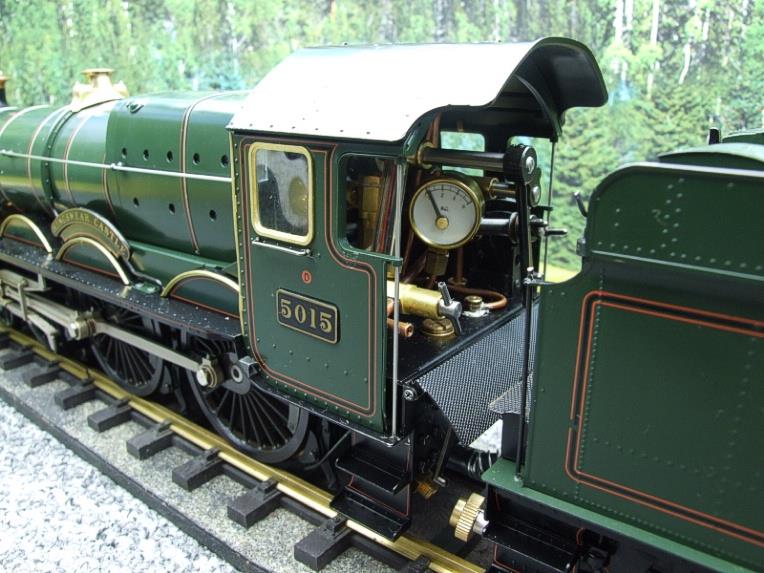

Full of realistic detailing including its cab works detail with pressure Gauge.

Specifications: Scale/Gauge 1/32 scale, Gauge One (45 mm) Length 628 mm (24.72 inches)Width 91 mm (3.58 inches) Height 128 mm (5.03 inches) Wheel Arrangement 4-6-0 Driving Wheel dia 62.0 mm Pilot Truck Wheels 28.0 mm Tender Truck Wheels dia 39.0 mm

Axle Driven Pump bore 5 mm, stroke 6 mm - fitted to loco with by pass valve Cylinder 4 cylinders bore 10 mm, stroke 20 mm with slide valve Valve travel 6 mm.

Cut-off at full gear: 75% Valve Gear Walschaert with screw type revers er Boiler Type "C" type with 4 flue tubes Water Capacity 254 cc at 80% full Burner 3 tube alcohol burner Boiler
Fittings.

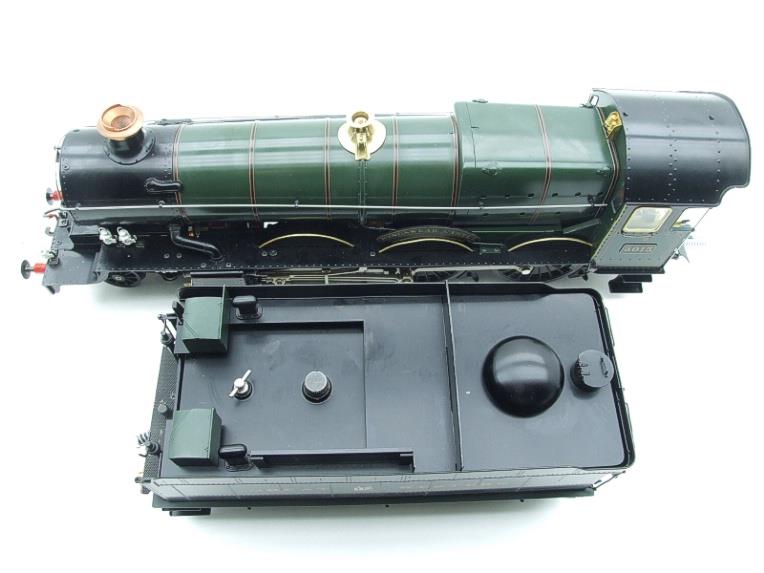

Water Gauge, Pressure Gauge, Safety Valve, Check Valve, By-Pass Valve, Regulator Valve, Blower Valve Lubricator Roscoe Displacement Type in cab under footplate, Tender Lift out fuel tank.

Water tank with hand pump, Water Tank Capacity 250 cc, Fuel Methylated alcohol Minimum Radius
2 Meters.

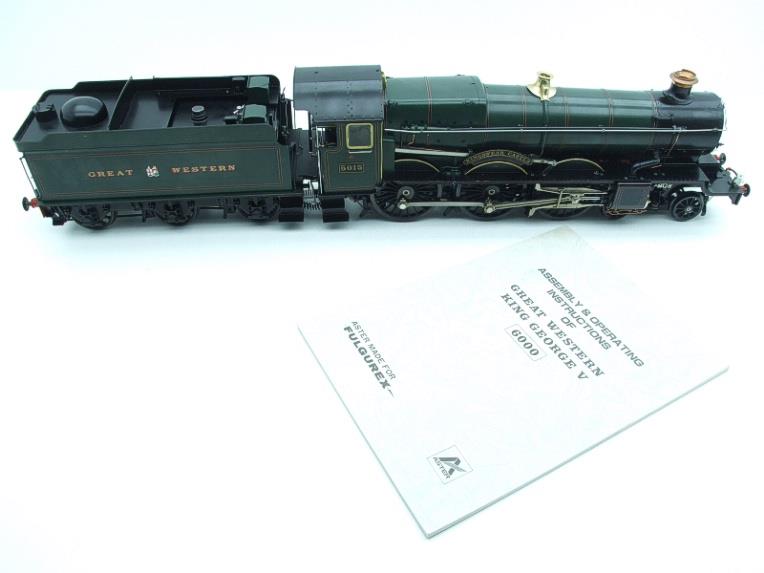

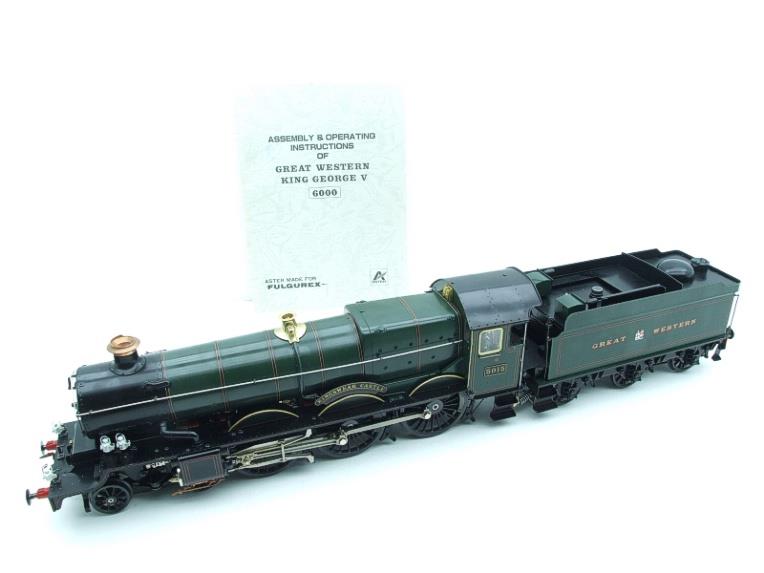

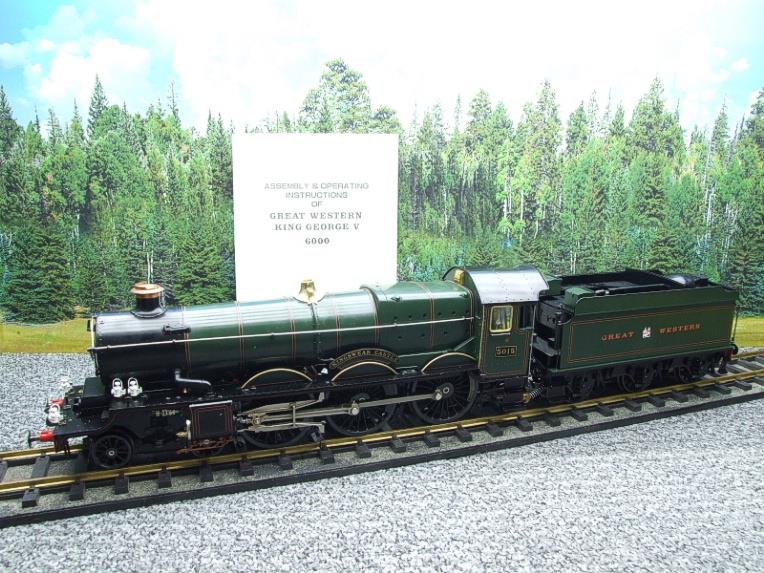

Unboxed but it will be carefully packed for the posting/shipping of it. Supplied with a assembly & operating manual for Aster King class. It does not include an accessories.But does have one extra lamp not shown.

Overall a superb collectors live steam edition which are certainly becoming rare now to find especially in this condition. (Superb priced).
